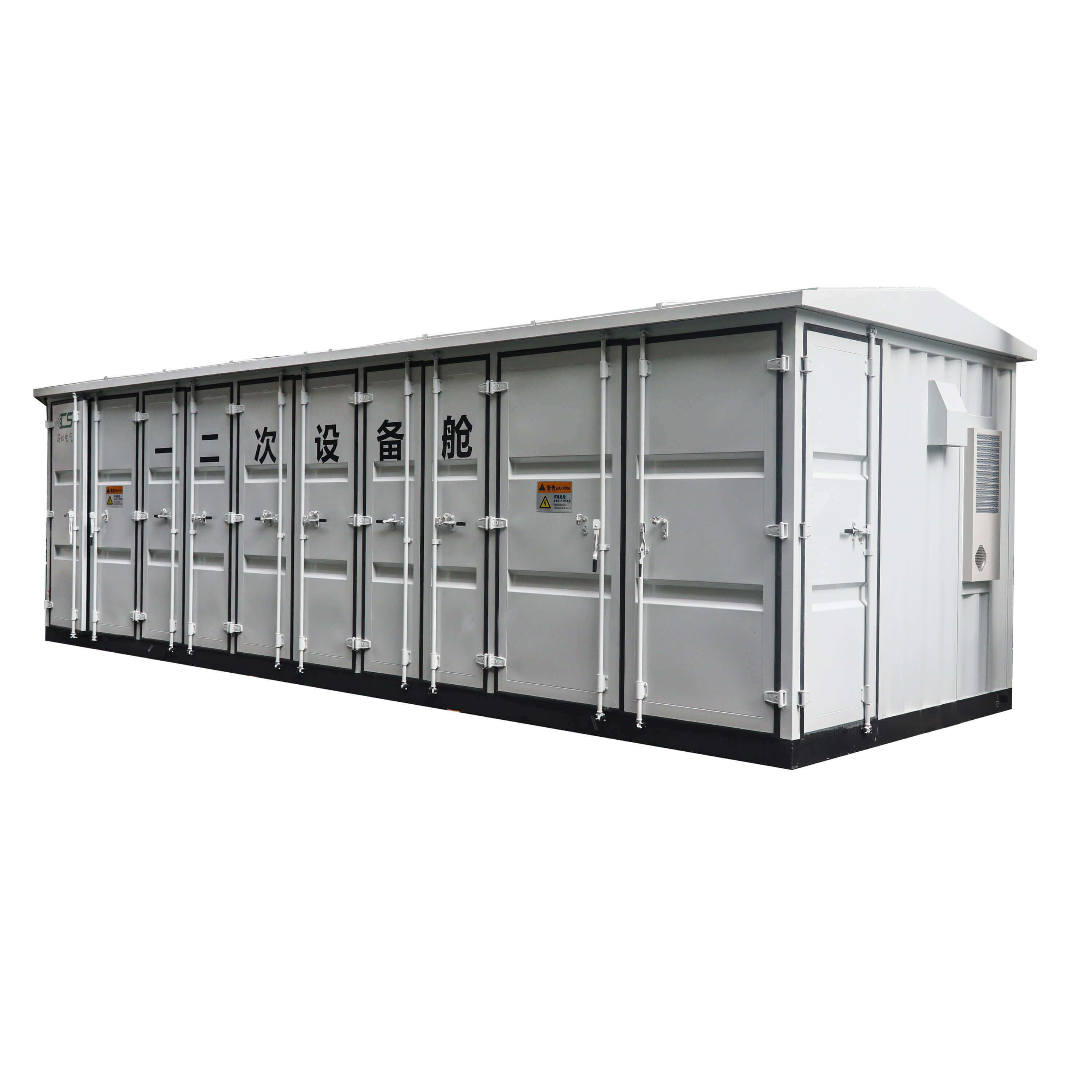

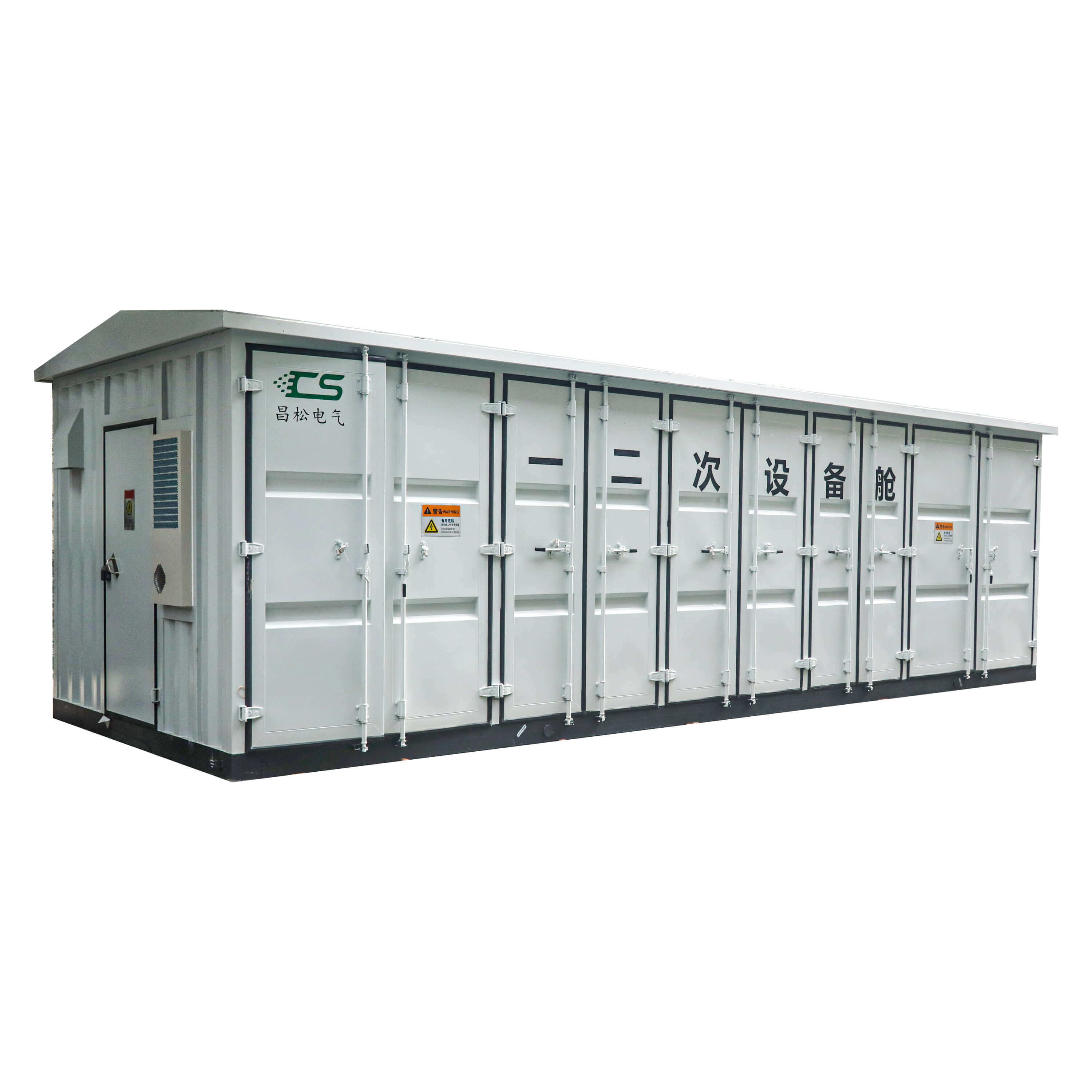

Primary and secondary photovoltaic prefabricated cabins
- Product Description
- Brand: Changsong Electric Appliance
- Place of origin: Zhejiang, China
- Function: Construction of intelligent substations
- Scope of application: Applicable to the construction of power facilities such as intelligent substations and photovoltaic power stations of various scales
- Structure: Prefabricated cabinet body, including main and auxiliary cabinets, adopting a double-layer structure (the upper layer is a prefabricated compartment for secondary equipment, and the lower layer is a prefabricated compartment for 35 kV switchgear).
- Partial materials: Metal/composite materials, ensuring the structural strength and environmental erosion resistance of the cabin
- Floor area: Approximately 2,000 square meters (a reduction of about 33% compared to traditional design)
- Construction period: The entire platform is pre-assembled as a whole, with all equipment prefabricated in the factory and installable on-site. The construction period is short, requiring only 1-2 months (approximately 50% shorter than traditional designs).
- Cable usage: With highly integrated equipment and shortened electrical distances, approximately 30% of cables can be saved.
- Environmental requirements: Adopt a fully metallic cabin design with an IP54 protection rating, equipped with a comprehensive HVAC system to prevent sand, dust, and condensation, thereby enhancing equipment reliability.
- Construction and management costs: With prefabricated design and the elimination of buildings for the entire station, construction costs are low; all equipment is provided by Changsong Electric, which is also responsible for all installation and commissioning work, resulting in low management costs.
- Operation and maintenance costs: With a closed design, it is largely unaffected by external conditions such as the environment, significantly reducing operation and maintenance costs.
- Prefabricated cabin series (specific models can be customized according to customer needs)
Product Overview
The primary and secondary photovoltaic prefabricated cabin launched by Changsong Electric Co., Ltd. is an advanced power equipment solution specifically designed for the construction of intelligent substations. This prefabricated cabin adopts a prefabricated cabinet structure, comprising a main cabinet and a secondary cabinet, integrating key equipment and components in modern power systems. The main cabinet is typically equipped with core devices such as transformers, circuit breakers, and disconnect switches, responsible for power conversion and primary distribution; whereas the secondary cabinet contains measuring instruments, control relays, communication equipment, etc., enabling precise monitoring and control of power flow. The primary and secondary photovoltaic prefabricated cabin not only embodies the application of new technologies, materials, and equipment but also significantly shortens the construction period, enhances project quality, reduces overall costs, and benefits environmental protection through highly integrated and modular design.
Main product features
Highly integrated and modular design
The primary and secondary photovoltaic prefabricated cabin adopts a highly integrated and modular design concept, integrating complex power system equipment into a compact prefabricated cabin body. This design not only facilitates transportation and installation but also significantly reduces the workload and complexity of on-site construction. The modular structure enables flexible combination and expansion of the prefabricated cabin according to actual needs, meeting the construction requirements of intelligent substations of different scales and configurations.
All-metal cabin with high protection grade
The prefabricated cabin adopts a fully metallic cabin design, featuring excellent structural strength and resistance to environmental erosion. With an IP54 protection rating, it ensures that the internal equipment remains dry and clean in harsh environments, effectively preventing the impact of harmful factors such as windblown sand and condensation on the equipment. Additionally, the metallic cabin provides good electromagnetic shielding, ensuring the stable operation of the equipment inside.
Well-established HVAC system
To cope with extreme climatic conditions, primary and secondary photovoltaic prefabricated cabins are equipped with a comprehensive HVAC system. This system can automatically adjust the indoor temperature based on the ambient temperature to ensure that the equipment operates in a suitable working environment. Meanwhile, the air conditioning system also features dehumidification to effectively prevent damage to the indoor equipment caused by moisture.
Intelligent Monitoring and Control System
The prefabricated cabin integrates an advanced intelligent monitoring and control system capable of real-time monitoring of equipment operating status and parameters, such as voltage, current, and power. Through data analysis and processing, the system can promptly identify potential faults and issue early warnings, providing strong decision-making support for operation and maintenance personnel. Additionally, the intelligent control system supports remote operation and automated control, enhancing the reliability and efficiency of the power system.
Energy conservation, environmental protection, and sustainable development
The design and manufacturing of primary and secondary photovoltaic prefabricated cabins fully take into account the requirements of energy conservation, environmental protection, and sustainable development. By optimizing equipment selection and layout, energy consumption and carbon emissions are reduced. Meanwhile, the modular design of the prefabricated cabins enables easy disassembly and recycling of equipment after its end-of-life, thereby reducing environmental pollution.
Detailed product parameters
Brand and Origin
Function and Application
Structure and Material
Technical parameters
Product Model
Scope of application
Primary and secondary photovoltaic prefabricated cabins are widely applied in the construction of power facilities such as smart substations and photovoltaic power stations of various scales. Their highly integrated and modular design enables rapid deployment in diverse complex environments, meeting power demands across different scenarios. Whether for the upgrading and transformation of urban power grids or photovoltaic power projects in remote areas, primary and secondary photovoltaic prefabricated cabins offer reliable and efficient solutions.
Frequently Asked Questions (FAQ page)
What are our main products?
A: Our main products include prefabricated cabins for primary and secondary equipment, photovoltaic step-up substations, photovoltaic grid-connection cabinets, shunt reactors, PV combiner boxes, MCCBs (molded case circuit breakers), MCBs (miniature circuit breakers), surge protectors, and teco series electrical equipment, among others.
2. If I go to China, can I visit your factory?
A: Of course. Our company and factory are located in Wenzhou, Zhejiang, China. You are welcome to visit us at any time. During the visit, you can gain an in-depth understanding of our production processes, quality control systems, and product R&D capabilities, as well as engage in face-to-face communication with our team.
3. Can this product be used in harsh environments?
A: Yes, our prefabricated cubicles for primary and secondary equipment are entirely made of metal, ensuring excellent durability and reliability. These cubicles are well-suited for operation in harsh environments, including high-temperature areas and arid deserts. The all-metal design offers exceptional resistance to environmental erosion, maintaining the integrity and functionality of the enclosed equipment even under severe conditions. Additionally, we have equipped the prefabricated cabins with a comprehensive HVAC system to cope with extreme climatic conditions, ensuring stable operation of the equipment.
4. How long is the construction period for this product?
A: Our prefabricated cabin adopts an overall pre-assembly design, with all equipment prefabricated in the factory and capable of rapid on-site installation. Therefore, compared to traditional designs, our construction period is significantly shortened, typically requiring only 1-2 months to complete the construction and commissioning of the entire platform.
5. What are the operation and maintenance costs of this product?
Answer: Since our prefabricated cabin adopts a closed design and is basically unaffected by external conditions such as the environment, the operation and maintenance costs are relatively low. Additionally, we provide an intelligent monitoring and control system that can monitor the operational status and parameters of the equipment in real time, promptly identify potential faults and issue early warnings, providing strong decision-making support for operation and maintenance personnel and further reducing operation and maintenance costs.
